ENMIND

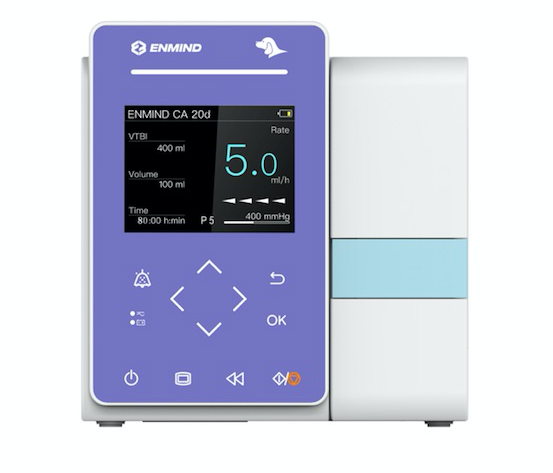

Enmind EN-V3 Compact Infusion Pump

Or 10 interest free payments from $87.45 with What's this?

Compact size Infusion pump is ideal for mounting on animal cages during recovery or on an IV stand during surgery.  The easy to read 2.8inch colour touch screen gives the EN-V3 flexibility to be used in a variety of veterinary applications.

Parameter setting and editing directly on touch screen the EN-V3 is compatible with any standard IV sets ( 3.0-4.5mm diameter) and storing up to 200 editable brands:

Other features include:

  • Resetting rate, volume, air level, occlusion level without stop infusion
  • infusion modes: ml/h( including Rate & Time modes) Body weight, Drip, Micro
  • Infusion rates range from 0.1ml/h to 2000ml/h
  • Optional WIFl connection to central monitor
  • Last therapy for rapid infusion start
  • IP44 waterproof
  • 138mm(h) x 132mm(w) x 90mm(d)
  • Weighing 1.5kg
  • Standard Rechargeable Battery with run life of > 5 hours with optional 2 batteries for >10 Hours run life.

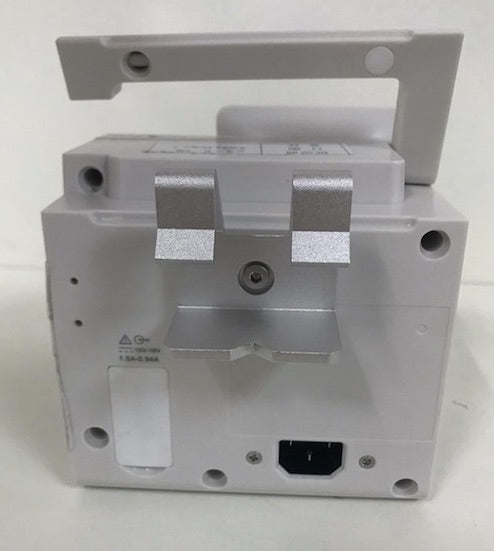

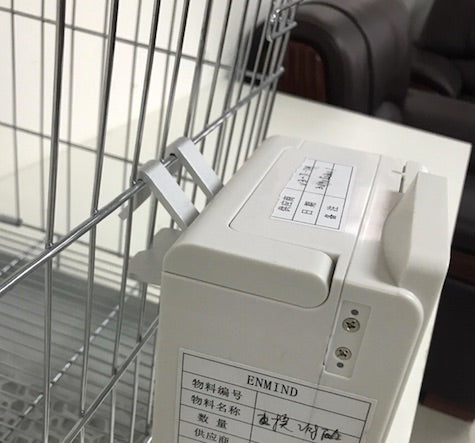

  • Comes both IV Pole clamp and Cage clamp.

Special Features

Titration

Change flow rate without stopping infusion

Reset total volume

Reset total infused volume to zero without stopping infusion

Reset occlusion level

Reset occlusion alarm level without stopping infusion

Reset air bubble level

Reset air bubble alarm level without stopping infusion

Last Therapy

Last therapies can be stored and used for rapid infusion

Drug Library

No less than 2000 drugs

DERS

Drug error reduction system

Anti-Bolus

Automatic drop line pressure to reduce bolus impact after occlusion

Purge

Remove the air bubble

Screen Lock

Avoid misoperation

Standby Mode

Standby time adjustable

Micro Mode

Limit the max infusion rate to double ensure patient safety

DPS

Real-time pressure display in graphically and numerically

Bubble Detector

Adjustable. Single bubble and accumulated bubble in 15min

Brightness

Adjustable

Alarm Volume

Adjustable

History Record

More than 2000 entries



Basic Parameters

Case Material

PBT+PC

Screen

4.3 inch LCD color touch screen

Infusion Mode

ml/h (include Rate mode, Time mode), Body weight, Drip, Sequence, Drug Library, Micro

Accuracy

±5°/o

Flow Rate Range

0.1-2000ml/h   (min. increment 0.01ml/h)

VTBI

0-9999.99 ml

KVO

0-5ml/h adjustable (min. increment 0.01ml/h)

Bolus Rate

0.1-2000ml/h (automatic & manual bolus available)

Occlusion Level

4 levels selectable (150mmHg - 900mmHg)

Interface

DB15 muti-functional interface

Wireless

Wifi (optional)

 Alarm Type

VTBI Infused, Occlusion,  Pressure drop,  Battery empty, KVO finished,           Standby time end, Door Open, Single air bubble, Accumulated air bubble, Abnormal drip rate, Empty drip chamber,  VTBI near end,                                        Battery near empty,

Reminder alarm, No power supply, Drop sensor connection, System error, etc.
