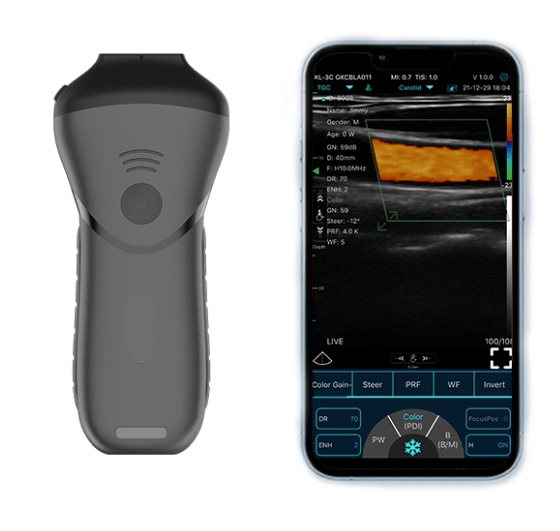

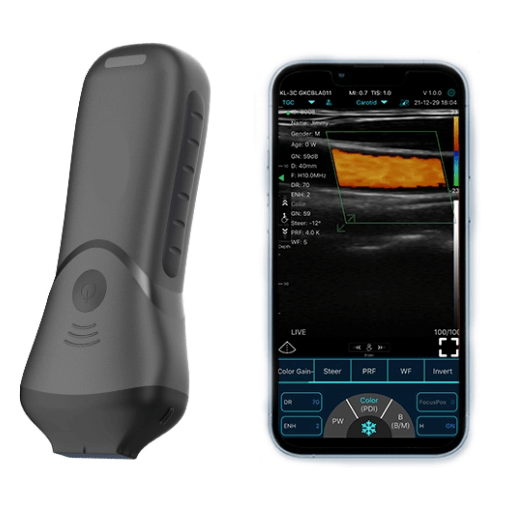

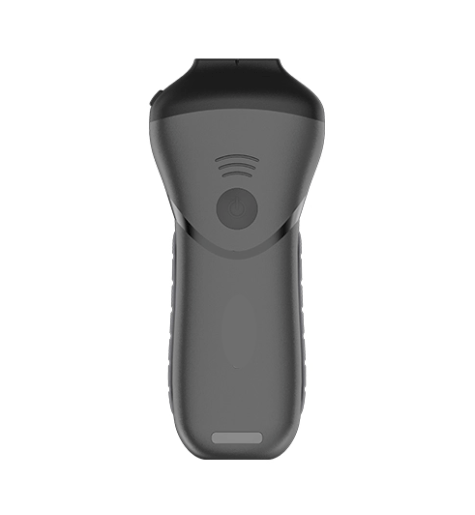

C10MS Pro B&W/Colour 14Mhz Superficial Hand-Held Ultrasound

Introducing the C10MS PRO Colour Superficial Ultrasound HD High-Freq Linear Probe. With a linear frequency set between 10-14mhz and 192 elements, this colour Doppler linear probe can quickly examine arteries, blood vessels, MSK, and more. The C10MS PRO wifi Ultrasound linear array transducer probe is the top choice for superficial organ examination.

The C10MS-Pro B&W+ Colour Linear Ultrasound Probe 10-14Mhz Linear.

Take your diagnostic exams to the next level with the C10MS Pro Color Superficial Ultrasound HD High-Freq Linear Probe. With selectable frequencies between 10Mhz and 14.0Mhz, this lightweight and convenient scanner provides a broader range of application scanning depths. Use the Wireless US app on your iPhone, iPad, smart phone or PC for a transportable and versatile ultrasound solution.

Download the Wireless US app to iPhone, iPad or smart phone or PC for a convenient, compact, transportable Ultrasound that can be applied to many applications:

• MSK
• Small Parts
• Vascular
• Needle Guide

C10MS-Pro 14Mhz Colour Linear Portable Ultrasound details:

• Workable with Tablet or Smart Phone or Win10-11 PC
• Built-in and replaceable battery
• Advanced digital imaging technology, clear image
• Free software
• No licence fees
• Unlimited users
• Wi-Fi connectivity, easy to operate
• Small and light, easy to carry

C10MS-Pro Hand-Held Linear HD B&W + Colour Ultrasound Probe

• Scanning mode: Electronic Linear array
• Display mode: B, B/M, colour, PW, PDI
• Frequency: 10MHz & 14MHz,
• Scanning Depth: 20-30-40-60mm
• 192 Element, 64 channel,
•  Foot print L28
• Connectivity: Wi-Fi or USB Cable ( Android Only)
• Bootup: < 5 seconds ( platform dependant)
• Measurement:
  • • B: Length, Area/Circumference, Angle, trace, Distance,GA(CRL,BPD,GS,FL,HC,AC), EFW( BPD,FL).
    • B+M Heart Rate, Time, Distance
    • B=PW: Velocity, heart rate(2), S/D, Depth
    • Vassel Flow Preset(Auto Measure): PS,ED.TAMEAN,PI,RI,S/D, Diam, Flow
• 4400mAh 3.7V Battery
  • working time: > 4hours ( continuous)
  • Standby: >72 hours
  • 2~3 hr rechange time
• Dimension: 142×62×30mm
• Weight:：230g
• Wifi type:：2.4G/5G
• Working system: Apple iOS ( Vs 8.0+), Android & Windows 10-11 PC
• Presets: Thyroid. Small parts,Pediatrics, Vascular, Carotid, Breast, MSK, Nerve, Vessel Flow, Aesthetics


Interface Display:

• Adjustable Gain
• 8 x TGC
• Adjustable Depth
• ENH ( Edge enhancement)
• Mode: B mode , B+M mode, B+ PW Mode
• Adjustable Dynamic range
• Adjustable Frequency
• FocusPos
• Centreline
• Biopsy
• Annote
• Body Marks
• Dual Screen Function
• Measure Zoom function
• Full screen button

 ARTG: 407353

How does it work: The probe connects via Wi-Fi to your own device, which can be iPhone, Ipad, Android phone or tablet or a PC running WIN10-11 operating system. The Ultrasound probe is discovered in the Wi-Fi setting page of your device and connects once selected. Open the software App and the unit is ready to scan. If using an Android devise the USB cable can also be used to connect the probe.

Available connection options:

• Android Devices - USB Type C or Wi-Fi connection
• iOS - Wi-fi connection only
• Windows - USB or WiFi connection

Functions: Many functions found on larger real time ultrasound system can be found on the Wireless US such as: adjusting gain, dynamic range, focus position, depth, colour mode & sensitivity. The linear probes offer steer function in colour mode. There is also a biopsy mode which applies an adjustable guiding line for needle angle guide. On screen measurements can be done using the calliper setting were anchoring or moving measurement cursors with your finger or a stylus.

 Please note this item is for Pre-order, please allow 10-14 days shipping
