Kaixin KX5200V Veterinary Ultrasound
$3,995.00
'Includes GST '
Pregnancy & Fertility Testing Bovine & Equine Animal Ultrasound
Veterinary Hand Held Ultrasound Scanner

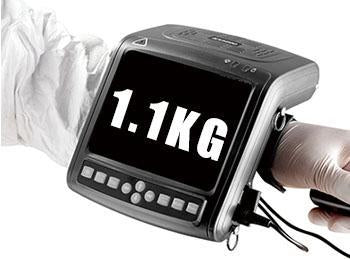

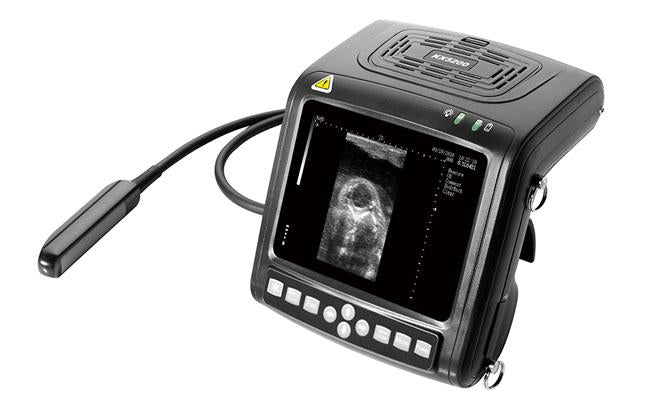

Kaixin KX5200V is a full digital B mode ultrasound scanner with some of the best features and functions for veterinary ultrasound scanning. It gives an excellent image quality with high resolution and high penetration. The rectal probe has a 70mm producing wide images. It is lightweight and can conveniently be worn on the wrist or hung on the neck for hands free use. The Kaixin KX5200V has been listed as one of the top 3 veterinary ultrasound.
Designed for many veterinary examination:
Bovine
Equine
Ovine
Canine
Feline
Goat
Llama
Kaixin KX5200V Details:
Digital image technology
Ingenious outline and multifunction
Different probes can be used optionally
Very light for using

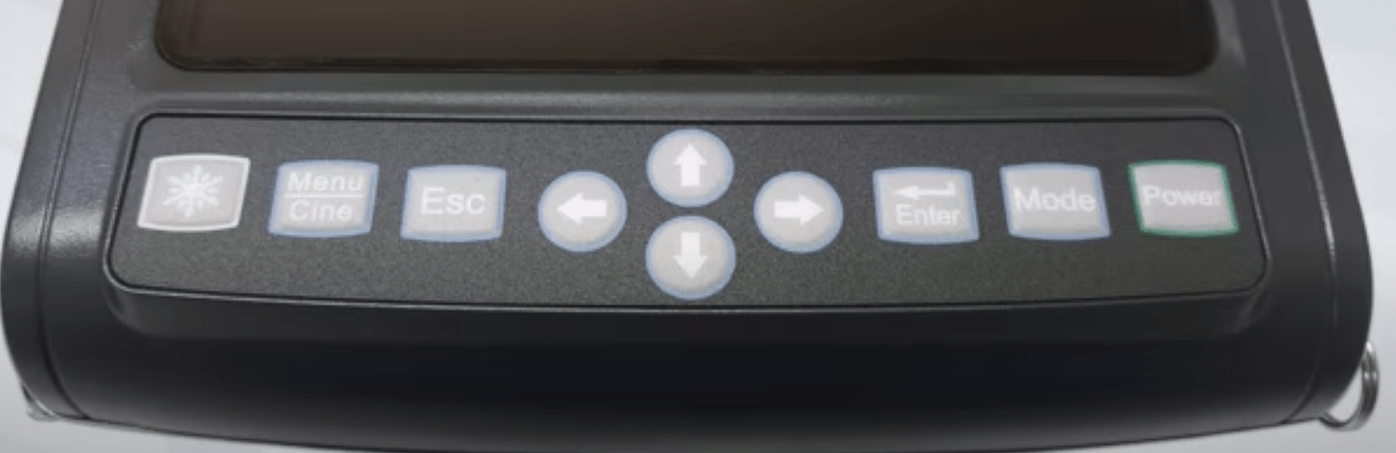

Ergonomic keyboard
USB disk function makes the images easily transferred into computer

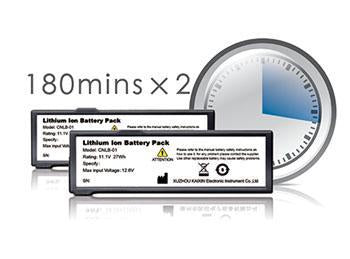

Rechargeable battery lasts about 2 hours
Kaixin KX5200v Technical Specifications
Technology: All-digital imaging technology, full digital beam forming
Scanning methods: electronic convex, electronic linear, electronic micro-convex
Scanning technology: Real-time dynamic imaging, harmonic imaging
Probes: Multi-frequency probes

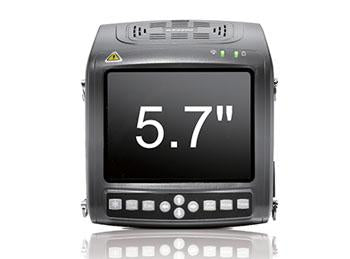

Monitor: 5.7" high resolution non-interlaced LCD display high brightness and contrast for outdoor use.
Gray scale of the ultrasound machine: 256 levels.
Display modes: B, B/B, B/M, M, or 4B
Speed in M mode: 1s, 2s, 3s, 4s, 5s, 6s, 7s, and 8s
Magnification: *0.8, *1.0, *1.2, *1.5, *1.6, *2.0, *2.4, and *3.0
Focusing methods: Single-point, multi-stage transmitting, dynamic focusing
CINE loop: 256-frame
Zoom: Intelligent local zoom in real-time and frozen mode
Image storage and transfer: Built-in 100-frame image storage, USB Image transfer, Ultrasound working station
Image Processing: Depth enhancement/pan function, Left/right, positive/negative, vertical, horizontal flip and B/W conversion, angle change, Image freeze/unfreeze, gamma correction, EDGE enhancement for image after-processing, gray transformation, gray rejection etc, frame correlation function, adjustment and display of near field, far field, total gain and dynamic range, Pre-processing: IP selection, dynamic range, EDGE enhancement, smooth, frame averaging, scanning angle selection, line density selection etc
Measurements:
B mode: Distance, circumference, area, volume, ratio, angle, % stenosis, histogram, profile etc.
M mode: Distance, time, velocity, heart rate etc.
General software packages for Abdomen, OB/GYN, Small parts, Urology, Cardiology etc.
Obstetric package including 10 tables, automatic calculation of EDD, BPD, GS, CRL, FL, HC, AD, AC, GA, FW and fetus weight, 4 veterinary body marks
Report: Obstetric report
Automatic calculation of back fat and lean percentage of swine.
Documentation: Full screen documentation, hospital name, Patient name, date/time
Power Supply: AC 100-240V~, 50-60Hz
Power consumption: ≤ 40VA

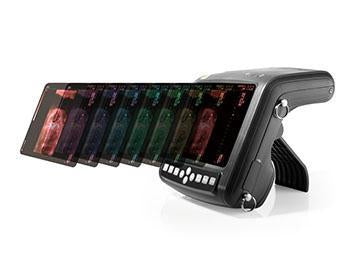

Others: 8 kinds Pseudo-color, Energy-saving, PAL-NTSC switchable
KX5200V Standard Configuration
KX5200V main machine
7Mhz high resolution non-interlaced LCD display
1 probe connector
256-frame CINE loop
100-frame image storage
USB disk port
Measurement & calculation software packages

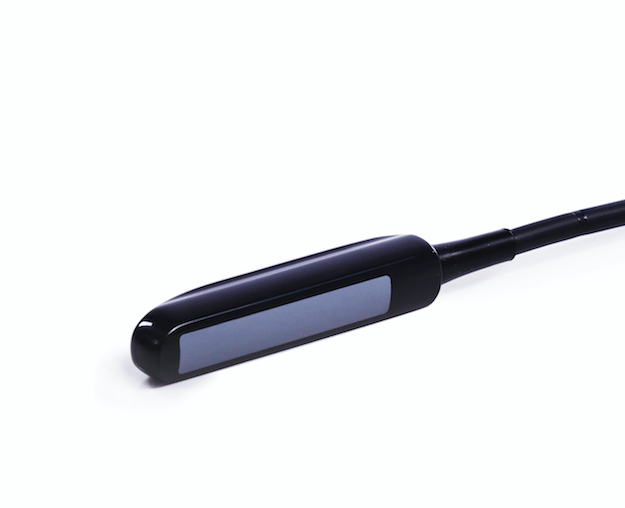

6.5MHz linear veterinary rectal probe
Optional Probes
6.5Mhz Linear rectal probe with handle (for veterinary endo-rectal)
3.5Mhz convex abdomen probe (for veterinary abdomen)
7.5MHz high frequency linear probe (for veterinary small parts, orthopeadics, musculoskeletal)
5.0Mhz Micro-Convex probe.
Optional
Belt
Biopsy needle-guided brackets
Ultrasound working station trolley
USB software with connection cable
Ultrasound goggles
Rechargeable power supply
Rechargeable power supply in car
